Máy hàn laser nhôm
Created with Pixso.

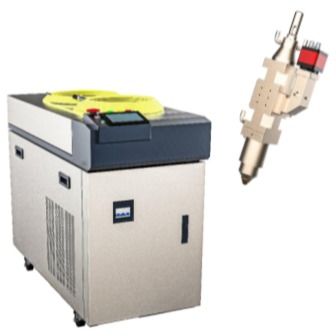

HanWei YAG 600w Single Lamp & Rod Energy Negative-Feedback Laser Welding Machine

HanWei YAG 600w Single Lamp & Rod Energy Negative-Feedback Laser Welding Machine

Tên thương hiệu: HanWei
Số mẫu: HW-Y-600
MOQ: 1 bộ
giá bán: USD / Set
Điều khoản thanh toán: T/t
Khả năng cung cấp: 2000 bộ / năm
Thông tin chi tiết
Nguồn gốc:
Thâm Quyến, Trung Quốc
Chứng nhận:
CE
Người mẫu:
HW-Y-600
Năng lượng đầu vào:
AC380V 50/60Hz
Bước sóng:
1064nm
năng lượng xung:
70/100 j
Chiều rộng xung:
15 mili giây
Năng lượng laser:
600W
Tính thường xuyên:
100 Hz
Sự ổn định sức mạnh:
± 3.0
Trọng lượng máy:
240kg
Phương pháp riêng biệt:
Thời gian / năng lượng
Chế độ làm mát:
Làm mát nước
Tuyến Laser:
1 ~ 4 (tùy chọn)
Kích thước máy:
1375*628*1150mm
Đỉnh công suất:
10 KW
chi tiết đóng gói:
Xuất khẩu ván ép đóng gói
Khả năng cung cấp:
2000 bộ / năm
Mô tả sản phẩm

HanWei YAG 600w Single Lamp & Rod Energy Negative-Feedback Laser Welding Machine



HanWei YAG 600w Single Lamp & Rod Energy Negative-Feedback Laser Welding Machine Description:



HW-Y-600w is a star product of the company, with independent research and development patents. It adopts single lamp single rod full cavity water cooling technology, and the core optical components are independently designed and processed abroad. It has a high damage resistance threshold and stable beam. Standard PID adaptive power feedback system ensures high conversion efficiency, spot stability, and fast welding speed. In the welding of power battery connectors and sealing nails, the efficiency reaches 6PPM and the qualification rate is 99.95%, which is widely used in the field of power batteries. The device is also equipped with various intelligent monitoring capabilities such as water flow, conductivity, temperature, and krypton lamp power.

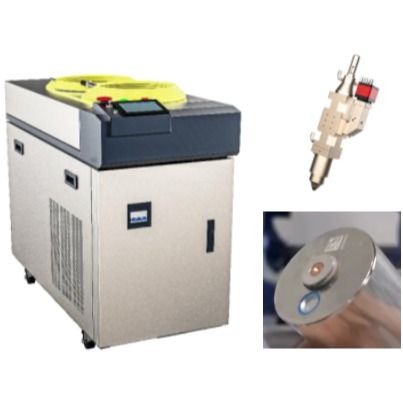

HanWei YAG 600w Single Lamp & Rod Energy Negative-Feedback Laser Welding Machine 0


HanWei YAG 600w Single Lamp & Rod Energy Negative-Feedback Laser Welding Machine Features:

1.Single xenon lamp single laser rod with full cavity water cooling
2.Integrating self-developed PID adaptive power feedback technology to achieve consistent welding results from start to finish.
3.Unique optical design, imported optical lenses, high damage resistance threshold, stable light speed.



HanWei YAG 600w Single Lamp & Rod Energy Negative-Feedback Laser Welding Machine Technical Parameters:

Model



HW-Y-600



Input Power
AC380V 50/60 Hz
Wavelength
1064nm
Laser Power



600W



Pulse Energy



70/100 J



Pulse Width
15 ms
Frequency
100 Hz
Power Stability
± 3.0
Working Mode



Peak Power




Cooling mode



Water Cooling



Machine Weight
240 Kg
Peak Power
10 Kw
Machine Size



1375*628*1150mm



Laser Route
1~4 (Option)
Separate Method
Time / Energy



HanWei YAG 600w Single Lamp & Rod Energy Negative-Feedback Laser Welding Machine Application:

New energy resources.



Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser aspires to democratize world-class laser welding technology, making it readily adoptable by all system integrators. As one of the handful of global enterprises certified as both a national high-tech entity and a "specialized, sophisticated, distinctive, and novel" enterprise, the company concentrates exclusively on the full-industry-chain R&D, production, and sales of various welding-dedicated lasers, laser control systems, laser optical systems, and laser welding technologies.



Its product portfolio primarily covers: Ring-Spot laser welding equipment, blue laser welding equipment, blue laser + fiber hybrid welding equipment, Diode + fiber hybrid welding equipment, YAG + Diode hybrid welding equipment, YAG laser welding equipment, Diode laser welding equipment, mold repair laser welding equipment, QCW laser welding equipment. Complementary to these core products are compatible laser welding control systems, laser welding optical systems, and related supporting products for laser welding peripheral devices.



Adhering to the principle of "taking R&D as the core, technology as the guarantee, and service as the support," Hanwei Laser has long provided services to B-end customers (including laser equipment firms and automation companies), with "reliable quality, continuous progress, persistent innovation, and thoughtful service" as its service objectives. The company consistently offers integrators cutting-edge international welding products and technical support, encompassing the entire process from component sourcing, R&D and manufacturing, assembly and testing to sales and after-sales services. Hanwei has gathered outstanding talents nationwide and built a team of technical experts who have long been engaged in laser welding R&D. Notably, it has in-depth expertise in fields such as lasers, laser systems, laser power supplies, laser control, laser optical system design, and welding process research, backed by extensive theoretical knowledge and practical experience.



Hanwei Laser’s products are widely applied in sectors including new energy batteries, automobiles, auto parts, electronic circuits, optical fiber communication devices, mobile phones, home appliances, kitchen and bathroom hardware, precision instruments, measuring tools, gold and silver jewelry, medical devices, solar energy, the eyewear industry, and the motor industry. In many of these industries, a number of its products deliver irreplaceable welding performance.
